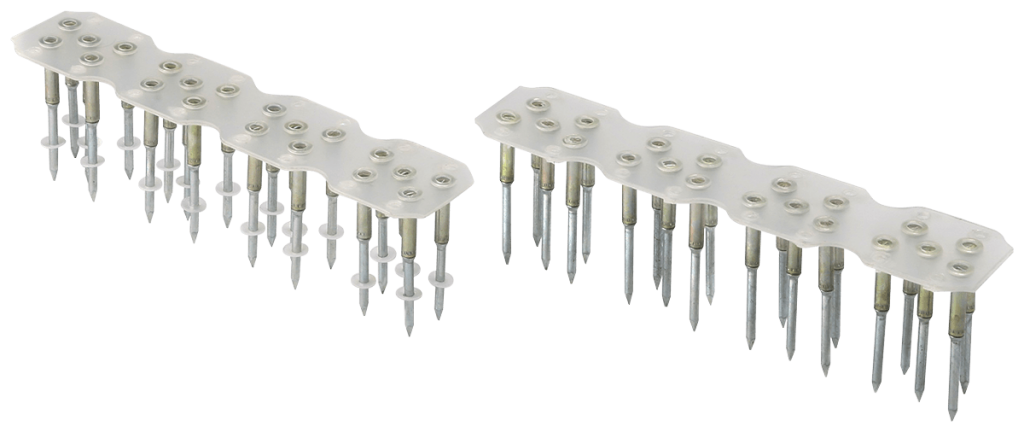

Rivets, or Riv-Nails, are an assembly of a rivet and a pilot nail. The rivet is a specially designed and semi-tubular rivet sized to fit a range of conveyor belt thicknesses. The rivet is “up-set” by the upper head of the pilot nail to clinch and maintain compression of the upper and lower plates of the belt fastener. The pilot nail has a point that is used to guide through the belt and into the anvil setting tool. Upon completion of the belt splice, the rivet and the pilot nail separate. All rivets are available with guide washers.
First, determine the size and quantity. Then, click on the Product Line tab above to view the complete Riv-Nail Rivet line.
Rivet Size Specifications
| Belt Thickness | Fastener Size | Rivet Size |
|---|---|---|
| 1/8"–3/16" | 2 | 0 |
| 3/16"–1/4" | 2, 3, 4, 5 | 1 |
| 1/4"–5/16" | 2, 3, 4, 5 | 2 |
| 9/32"–11/32" | 2, 3, 4, 5 | A |
| 9/32"–13/32" | 2, 3, 4, 5 | A/B |
| 11/32"–13/32" | 2, 3, 4, 5 | B |
| 13/32"–15/32" | 4, 5, 5 1/2, 6 | C |
| 15/32"–17/32" | 5 1/2, 6, 8 | C/D |
| 17/32"–19/32" | 5 1/2, 6, 8 | D |
| 19/32"–21/32" | 6, 8 | E |
| 21/32"–23/32" | 6, 8 | F |
| 23/32"–25/32" | 6, 8 | G |
| 25/32"–27/32" | 6, 8 | H |
| 27/32"–29/32" | 6, 8 | I |
Rivet Sets Chart
| Belt Width | R-2 | R-3 | TR-4 | R‑5, R‑5 1/2, R‑6 | R-8 |
|---|---|---|---|---|---|
| 18" | 40 | 60 | 80 | 100 | – |
| 24" | 52 | 78 | 104 | 130 | – |
| 30" | 64 | 96 | 128 | 160 | – |
| 36" | 80 | 120 | 160 | 200 | – |
| 42" | 92 | 138 | 184 | 230 | – |
| 48" | 108 | 162 | 216 | 270 | 432 |
| 54" | 120 | 180 | 240 | 300 | 480 |
| 60" | 136 | 204 | 272 | 340 | 544 |
| 72" | 164 | 246 | 328 | 410 | 656 |
| 84" | 192 | 288 | 384 | 480 | 768 |

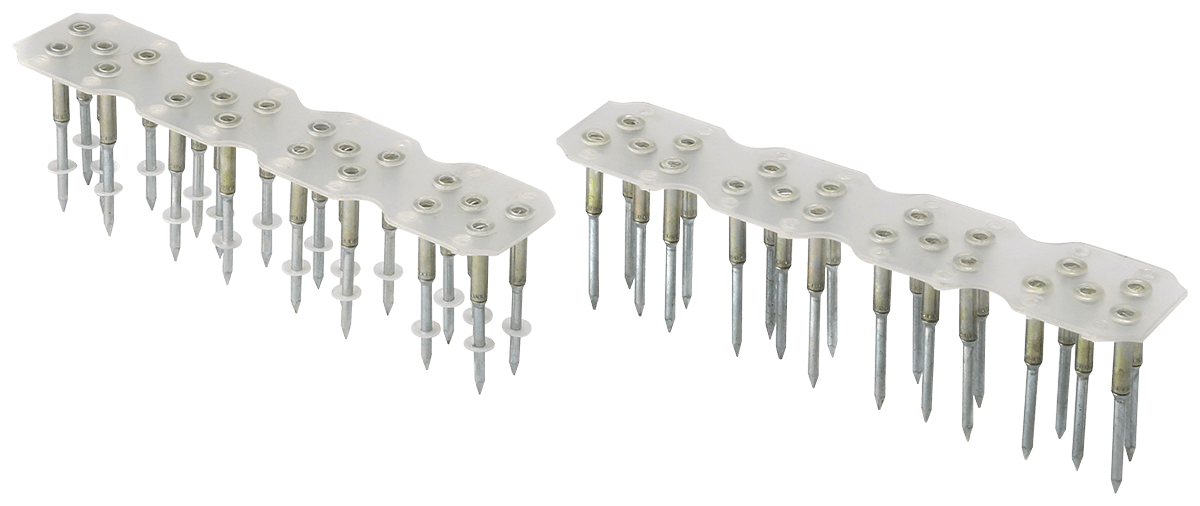

Steel Rivets 250/Box
| Standard |
|---|
| RN0 |
| RN1 |
| RN2 |
| RNA/B |
| RNA |
| RNB |
| RNC |
| RNC/D |
| RND |
| RNE |
| RNF |
| RNG |
| RNH |
| RNI |
Steel Rivets 2,000/Bucket
| Standard |
|---|
| RN0-2M |
| RN1-2M |
| RN2-2M |
| RNA/B-2M |
| RNA-2M |
| RNB-2M |
| RNC-2M |
| RNC/D-2M |
| RND-2M |
| RNE-2M |
| RNF-2M |
| RNG-2M |
| RNH-2M |
| RNI-2M |
Steel Rivets 1,000/Bucket
| Quick Load |
|---|
| RNQL 0 |
| RNQL 1 |
| RNQL 2 |
| RNQL A/B |
| RNQL A |
| RNQL B |
| RNQL C |
| RNQL C/D |
| RNQL D |
| RNQL E |
| RNQL F |
| RNQL G |
| RNQL H |
| RNQL I |
Stainless Rivets 250/Box
| Standard |
|---|
| RN0S |
| RN1S |
| RN2S |
| RNA/BS |
| RNAS |
| RNBS |
| RNCS |
| RNC/DS |
| RNDS |
| RNES |
| RNFS |
| RNGS |
| RNHS |
| RNIS |
Stainless Rivets 2,000/Bucket
| Standard |
|---|
| RN0S-2M |
| RN1S-2M |
| RN2S-2M |
| RNA/BS-2M |
| RNAS-2M |
| RNBS-2M |
| RNCS-2M |
| RNC/DS-2M |
| RNDS-2M |
| RNES-2M |
| RNFS-2M |
| RNGS-2M |
| RNHS-2M |
| RNIS-2M |
Stainless Steel Rivets 1,000/Bucket
| Quick Load |
|---|
| RNQL 0S |
| RNQL 1S |
| RNQL 2S |
| RNQL A/BS |
| RNQL AS |
| RNQL BS |
| RNQL CS |
| RNQL C/DS |
| RNQL DS |
| RNQL ES |
| RNQL FS |
| RNQL GS |
| RNQL HS |
| RNQL IS |
Notes On Packaging
Riv-Nails are available in boxes of 250 and buckets of 2,000. Case quantity on boxes is 10 per case. Quick Load buckets (green bucket) contain 1,000 rivets per bucket. The bucket opener quickly pries lid off of plastic pails — no need for cutting.
